Hash Functions

Def. Hash Function

A hash function is a mapping H such that:

1. H maps inputs of arbitrary lengths to outputs of length n, where n is fixed.
   Mathematically: H: {0,1}^* → {0,1}ⁿ
   • In general, H: S → T where |S| > |T|.
2. H(x) can be efficiently computed for all x ∈ {0,1}^*.

Security Requirements

• Preimage resistance
Hard to invert given just an output.
• 2nd preimage resistance
Hard to find a second input that has the same hash value as a given first input.
• Collision resistance
Hard to find two different inputs that have the same hash values.

Notes: Preimage resistant hash function is called one-way hash function (OWHF), and preimage/2nd preimage/collision resistant hash function is called cryptographic hash function.

Applications of Hash Functions

1. Password protection on a multi-user computer system
• Server stores (uid, H(passwd)) in a password file.
• If an attacker gets the file, she does not learn any passwords.
• Requires preimage resistance.
2. Modification Detection Codes (MDC)
• To ensure that a message m is not modified by unauthorized means, one computes H(m) and protects H(m) from unauthorized modification. (e.g. virus protection).
3. Message digests for digital signature schemes
• For reasons of efficiency, instead of signing a (long) message, the (much shorter) message digest is signed.
• Requires cryptographic hash function.
• Why collision resistance?
• Suppose Alice find x₁, x₂ with H(x₁) = H(x₂) and x₁ != x₂.
• Then Alice signs x₁ and later claim to have signed x₂.
4. Message Authentication Codes (MAC)
• Provides data integrity and data origin authentication.
5. Pseudorandom bit generation
• Distilling random bits s from several 'random' sources x₁, x₂, ..., x_t
• Outputs s = H(x₁, x₂, ..., x_t)
• Used in OpenSSL and /dev/random
6. Key derivation function (KDF)
• Deriving a cryptographic key from a shared secret key.

Remarks.

• Collision resistance is not always necessary.
• Depending on the application, other properties may be needed, for example, 'near-collision resistance', or 'partial preimage resistance', etc.

General Attacks

For finding preimages

• Given y ∈ {0,1}ⁿ, repeatedly select distinct x' ∈ {0,1}^* until H(x') = y.
• Infeasible if n ≥ 128.
• Remark. It has been proven that this generic attack for finding preimages is optimal.

For finding collision

• Repeatedly select arbitrary distinct x ∈ {0,1}^* and store (H(x), x) in a table sorted by first entry.
  Continue until a collision is found.
• E(# of operations) ≈ sqrt(π2ⁿ/2) ≈ sqrt(2ⁿ) (by Birthday paradox)
• E(space required) ≈ sqrt(π2ⁿ/2) ≈ sqrt(2ⁿ)
• Infeasible if n ≥ 160
• If n = 128:
• E(run time) ≈ 2⁶⁴ (barely feasible)
• E(space required) ≈ 7x10⁸ Tbytes (infeasible)
• Remark. It has been proven that this generic attack for finding preimages is optimal.

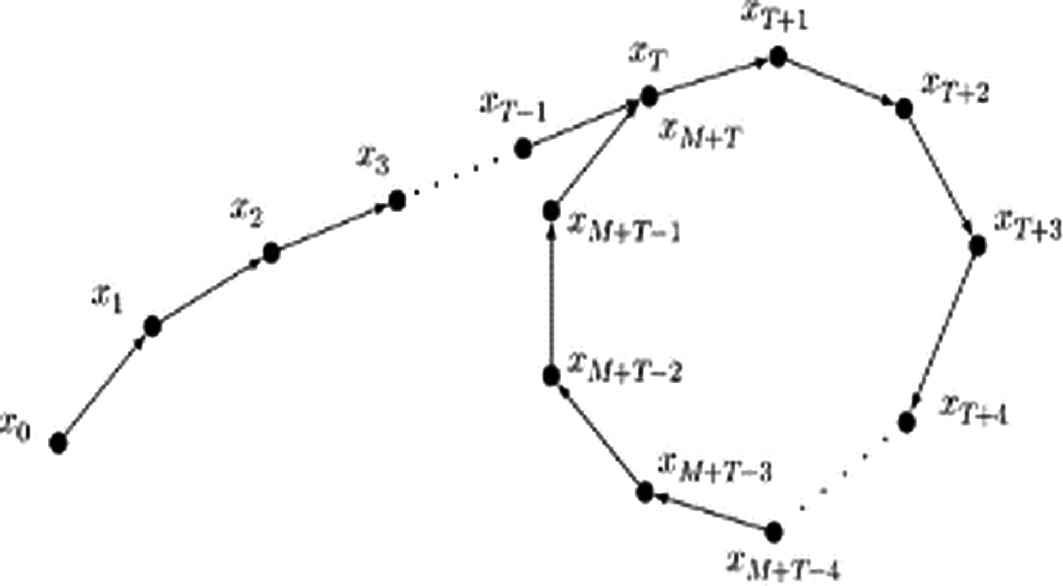

Pollard's rho algorithm for finding collision

• Set x_i+1 = H(x_i)
• Search for x_i = x_j
• Then H(x_i-1) = H(x_j-1)

Problem: naive implementation needs to store all x_i values to know when it loops.

Floyd's Cycling-Finding algorithm for finding collision

• To avoid storing all the x_i's:
• Set y₀ = x₀
• Set y_i+1 = H(H(y_i))
• Then y_i = x_2i
• Claim: x_i = y_i for some i
• x_i is eventually periodic
• Suppose ∃ N such that x_i = x_i+t for i > N
• Let kt > N for some k
• Then y_kt = x_2kt = x_{kt + kt} = x_kt
• Hence one can detect collisions with only two elements of storage and 3 times the computational cost:
• Store x_i and y_i
• Compute x_i+1 and y_i+1
• If x_i+1 == y_i+1: stop
• Else: (x_i, y_i) → (x_i+1, y_i+1) and repeat
• Example of Floyd's cycle implementation in python

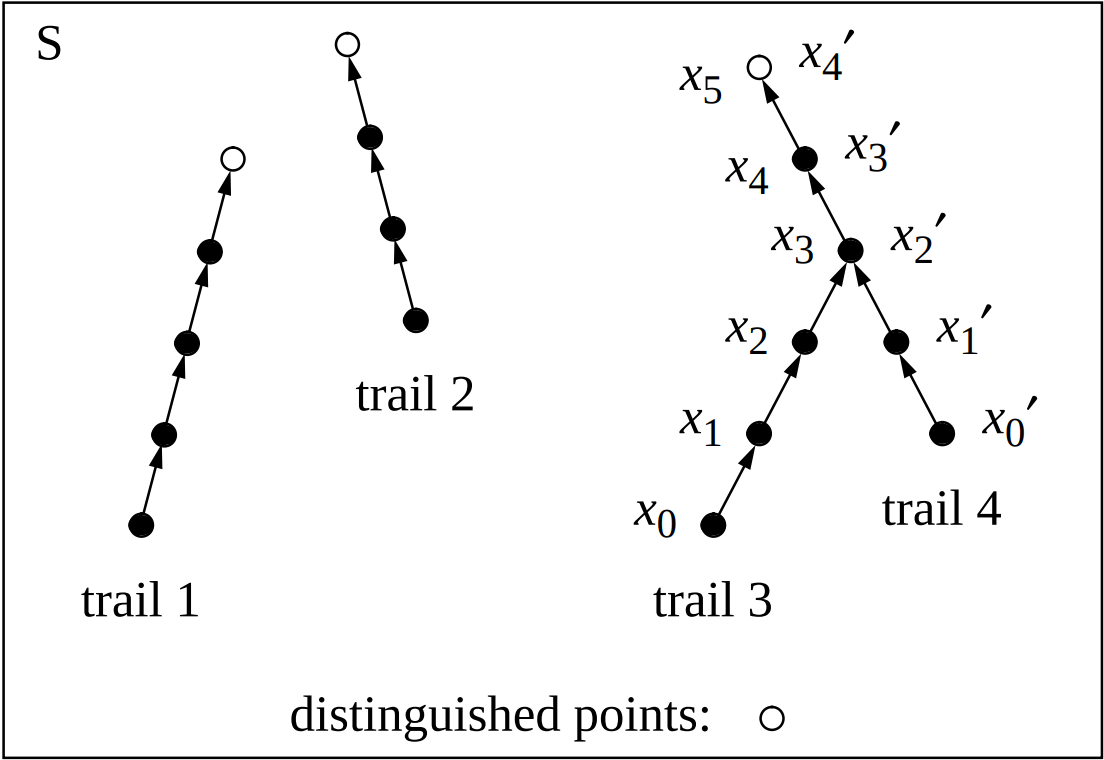

VW Parallel Collision Search

• Van Oorschot & Wiener (1993)
• Very small space requirements
• Easy to parallelize:
• m-fold sppedup with m processors
• Described a 1996 US $10 million machine which can find collisions for 128-bit hash functions in 21 days, collisions for 160-bit hash functions (such as SHA1) would take about 3500 years.
• The collision-finding algorithm can easily be modified to find "meaningful" collisions
• Define a distinguished point to be bitstring whose first k bits are zeros:
• Compute x_i = H(x_i-1)
• Store x_i if and only if x_i is a distinguished point.
• If x_i is a distinguished point, compare it to all previously stored distinguished points.
• If there is a match, backtrace to find a collision.
• Compared to brute force search:
• Reduce storage by a factor of 2^k
• Increase computational time by an additive 2^k
• Parallelizes trivially to multiple machines or processors.

Hash Function Construction

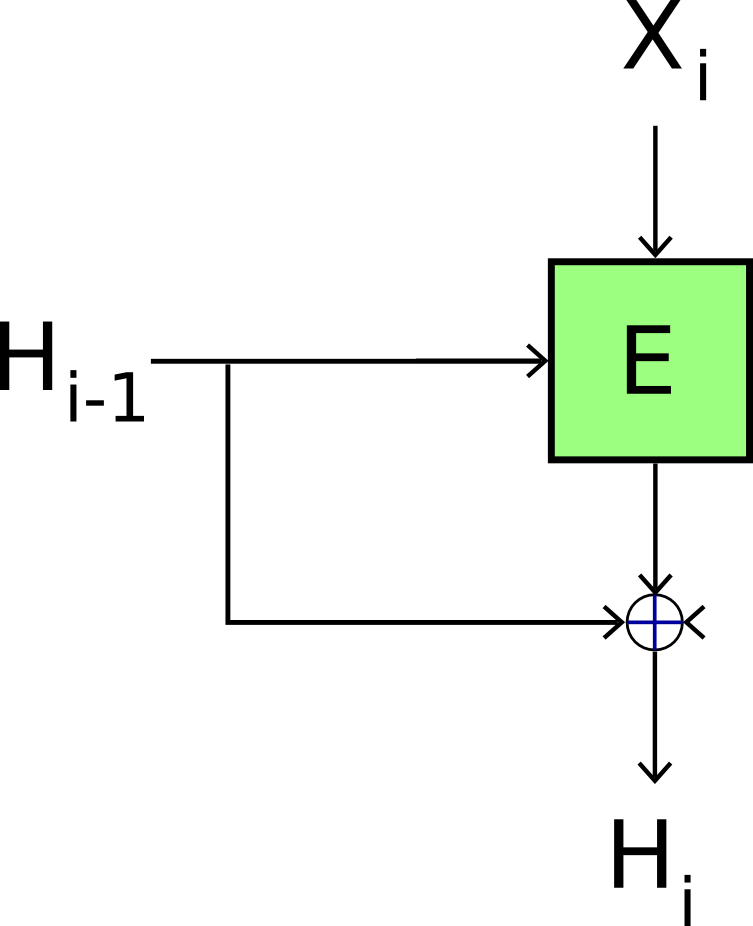

1. The Davies-Meyer Construction

Idea: Build a hash function from block cipher.

• Let E_k be an m-bit block cipher with n-bit key.
• Let IV be a fixed m-bit initiating value.
• To compute H(x), do:
1. Break up x||1 into n-bit blocks: x̄ = x₁, x₂, ..., x_t
   Padding out the last block with 0 bits if required.
2. Define H₀=IV.
3. Compute H_i = E_xi(H_i-1) ⊕ H_i-1 for i = 1, ..., t
4. Define H(x) = H_t

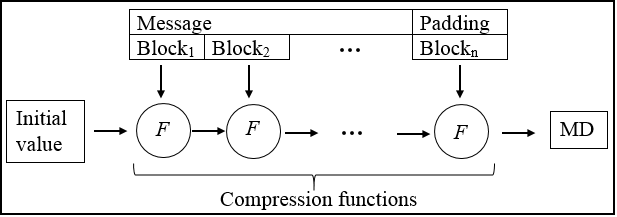

2. The Merkle-Damgard Construction

Components:
• Fixed IV ∈ {0,1}^m
• Compression function f: {0,1}^n+r → {0,1}ⁿ (efficiently computable)

• To compute H(m) where m has bitlength b < 2^r do:
  1. Break up m into r-bit blocks: m̄ = m₀, m₁, ..., m_t-1
     Padding out the last block with 0's if necessary.
  2. Define m_t, the length-block, to hold the right-justified binary representation of b.
  3. Define H₀ = IV
  4. Compute H_i+1 = f(H_i, m_i) for i = 1, ..., t
     H_i's are called chaining variables
  5. Return H(m) = H_t+1

MDx and SHAx families of Hash Functions

MDx-Family

• MDx is a familiy of iterated hash functions using the Merkle-Damgard constuction.
• MD4 was proposed by Ron Rivest in 1990.
• MD4 has 128-bit output.
• MD5 is a strengthened version of MD4 designed by Ron Rivest in 1991.
• MD5 has 128-bit output

SHA-1 and SHA-2

• Secure Hash Algorithm (SHA) was designed by NSA and published by NIST in 1993 (FIPS 180).
• 160-bit iterated hash function, based on MD4.
• Slightly modified to SHA-1 (FIPS 180-1) in 1994 in order to fix an (undisclosed) security waekness.
• SHA-2 family designed by NSA and published by NIST in 2001.
• Based on MDx-family of designs, but more complicated.
• Four security levels: SHA-22, SHA-256, SHA-384, SHA-512

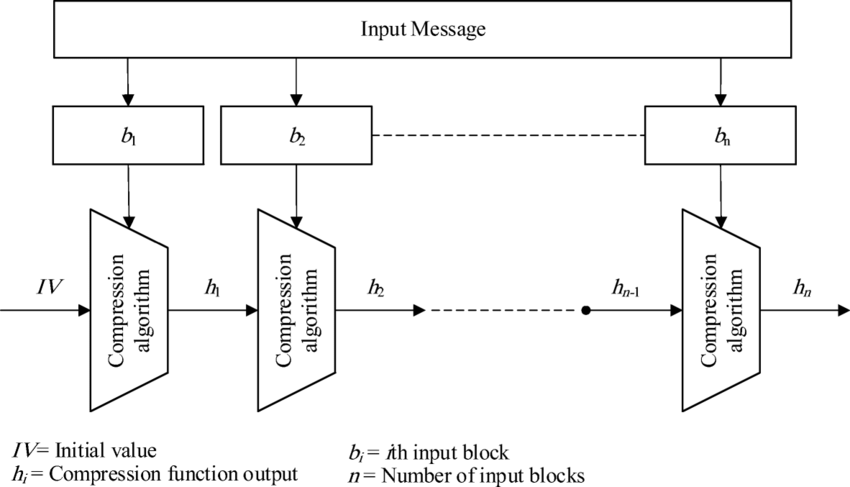

General Structure of MDx and SHAx (except for SHA-3) hash functions

• MD4, MD5, SHA-1 and SHA-2 are iterated hash functions
• Input is divided into 512-bit blocks (1024-bit blocks for SHA-512).
• Input is padded (1 followed by 0's) to a bitlength congruent to 448 mod 512 (896 mod 1024 for SHA-512).
• A final (zero-padded) 64-bit number containing the bitlength of the input in binary is appended (128-bit for SHA-512)
• A complicated function (compression function) f: {0,1}ⁿ x {0,1}⁵¹² → {0,1}ⁿ
• IV is a public constant

possibly add SHA-1 algorithm here

SHA-3

• The SHA-2 design is similar to SHA-1, so are concerns that the SHA-1 waekness would extend to SHA-2.
• SHA-3: NIST hash function competition
• 64 candidates submitted by Oct. 31, 2008 deadline
• 51 were accepted for the first round
• 14 were selected for the second round (Jul, 2009)
• Encouraged the public to study the hash functions
• Selected a list of finalists (Third quaerter, 2010)
• Announced a winner: Keccak (Bertoni, Daemen, Peeters, Van Assche) (Second quarter 2012)
• Standard published by NIST in 2015.

High Level Description of SHA-3

• SHA-3 is a sponge construction using the Keccak permutation.
• Sponge construction:
• Components:
• State S ∈ {0,1}^b
• function f: {0,1}^b → {0,1}^b (often a permutation)
• a padding function.
• The state S is divided into two parts:
• R ∈ {0,1}^r and C ∈ {0,1}^c where b=r+c
• r is called the rate and c is called the capacity.
• To hash a message m:
1. Initialize state S=R||C to zero
2. Pad message to break into r-bit blocks
3. [Absorb Stage] For each r-bit block B:
1. Replace R←R⊕B
2. Replace S←f(S)
4. [Squeeze Stage] While more output bits are needed:
1. Output R
2. Replace S←f(S)
• Keccak Permutation
• The keccak permuation is 24 rrepetitions of:
  XOR constant (affine) ∘ Bitwise combine (non-linear) ∘ Permuations ∘ Linear mixing

Remarks. NIST's Policy on Hash Functions (Dec, 2022)

• https://csrc.nist.gov/projects/hash-functions/nist-policy-on-hash-functions
• Should stop using SHA-1 for digital signatures and other applications that require collision resistance
• May still use SHA-1 for HMAC, KDFs and random number generators.
• May use HSA-2 for all applications that employ secure hash algorithms.
• SHA-3 may also be used, but not a must
• Withdraw SHA-1 from approved usage by end of 2030.

Attacks on MDx, SHA-1 and SHA-2

Generic Attacks

• To find a preimage for an n-bit hash:
• Try random inputs until desired hash is found.
• O(2ⁿ) operations on average
• To find a collision for an n-bit hash:
• Try random inputs until two matches found
• O(2^n/2) on average (Birthday paradox)

Non-generic Attacks

• MD4 (RSA Laboratories)
• Collision in 2¹⁵ steps (Bobbertin, 1996)
• Collision in 2³ steps (Wang et al., 2005)
• Collision in 2⁰ steps (Leurent, 2008)
• MD5 (RSA Laboratories)
• Collision in MD5 compression function (Dobbertin, 1996)
• Collision in 2³⁹ stpes (Wang and Yu, 2004)
• Collision in 31 seconds on notebook computer (Kilma, 2006)
• Preimage (theoretical) in 2^123.4 (Sasaki and Aoki, 2009)
• SHA (NIST/NSA based on MD4)
• Collision (theoretical) in 2⁶¹ (Chabaud and Joux, 1998)
• Collision found in 2⁵¹ (Joux et al., 2004)
• Collision found in 2⁴⁰ (Wang et al. 2004)
• SHA-1 (NIST/NSA based on SHA)
• Collision (theoretical) in 2⁶³ (Wang et al., 2005)
• Collision found in 2^63.1 (CWI/Google, 2017)
• No preimage/2nd preimage attacks known on SHA-1

Remarks.

• MD5 should not be used if collision resistance is required, but is not horrible as a one-way function.
• MD5 remains widely used in legacy software.
• MD5 shows up about 850 times in Windows source code.

Wang's Collision Finding Attack on SHA-1

• Fix any n-bit string I.
• Find two (different) 1-block message x=x' and y=y' such that F(I,x') = F(I,y')
• By selecting I=IV, Wang's attack can be used to find two 1-block messages x and y such taht SHA-1(x)=SHA-1(y)
• The attack takes about 2⁶³ steps
• The attacker does not have much control over x and y, so these messages are essentially meaningless.

Remark. Similarly, Wang's collision finding attack on MD5 work where now she finds two (different) 2-block messages x=(x₁,x₂) and y=(y₁,y₂) such that F(I,x)=F(I,y). It takes about 2³⁹ steps and still essentially meaningless due to limited control on x and y.

Exploit a Single Hash Function

• Let H be a hash function (MD5, SHA-1, ...)
• Suppose we find x,y such that H(x)=H(y)
• Suppose the collision finding method does not allow us to control the structure of x and y.
• Suppose the method takes considerable (but feasible) time.
• Question: How can an attacker, who has expended considerable resources to find two meaningless messages x and y that collide, make repreated use of this collision in a practical setting?

Extending a Collision

• Notion: For a t-block messages x=(x₁,...,x_t) and n-bit string I, define F(I,x)=H_t where H₀=I and H_i=f(H_i-1,x_i) for i=1,2,...,t
• Observation: Suppose x and y are messages of the same block-length such that F(I,x)=F(I,y). Then F(I,x||z)=F(I,y||z) for any message z. Furthermore, if I=IV, then H(x,z)=H(y,z) for any message z.

Exploiting Wang's Collision

• Suppose MD5(or SHA-1) is being used in a hash-then-sign signature scheme.
• Let M₁ and M₂ be two documents in postscript format. Suppose M₁ is harmless for Alice and M₂ is harmful for Alice
• Daum and Lucks (2005): showed that how Wang's attack on MD5(or possibly SHA-1) can be used to find two new postscript files M̂₁ and M̂₂ such that:
• When M̂₁ is viewed or printed, it looks the same as M₁. Similarly for M̂₂.
• MD5(M̂₁)=MD5(M̂₂)
• The attacker Eve sends the postscript file M̂₁ to Alice. Alice views or prints the file, and then signs it and returns to Eve. Since MD(M̂₁)=MD5(M̂₂), Eve also has Alice's signatuer on M̂₂.
